Details

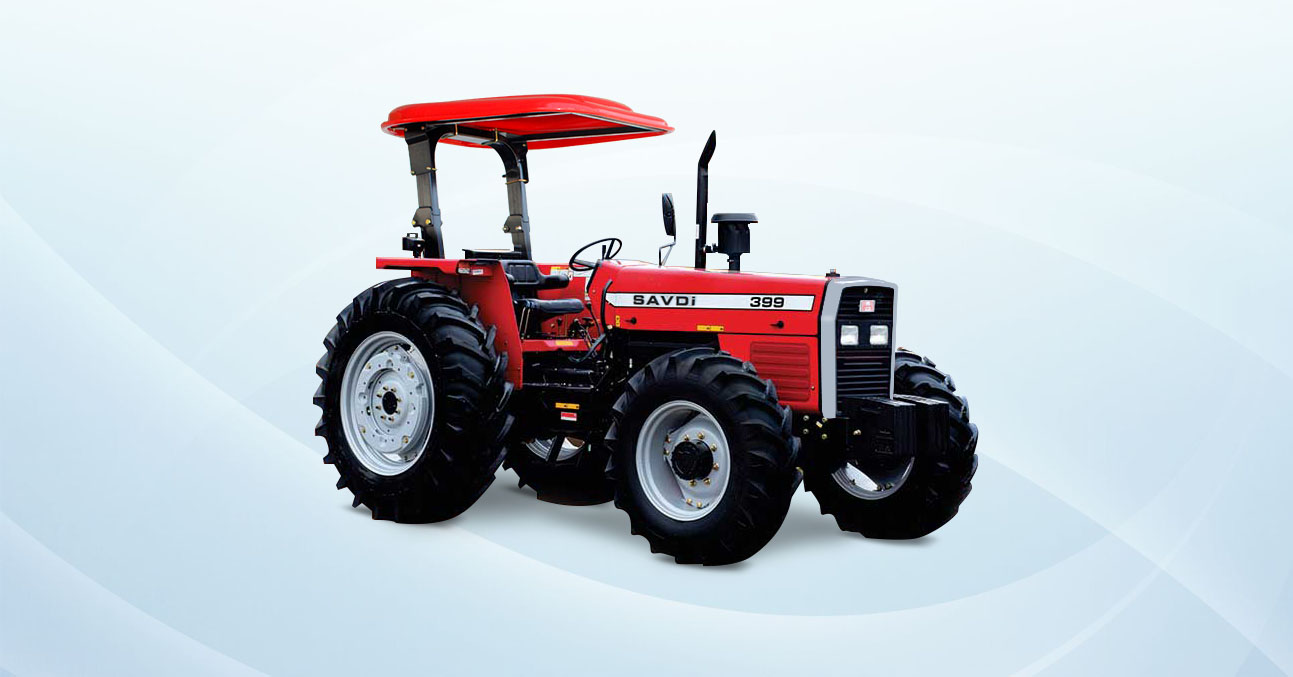

399 4wd series validatedit self by its economy continuing from past to present, by its performance and by its durability. Tractor of past and present

Technical Specifications

ENGINE	GEARBOX AND ROAD SPEEDS	CAPACITES
Trade Mark / Type Clinder Volume / No Injection Type A6.1006 4.0 Liters / 4 Direct Injection Compression Ratio 16,01 Cylinder Diameter / Stroke 101X127 mm Cooling Water Cooled Aspiration - Air Filter Dry Type / Double Element Exhaust Maximum Power (ISO) Maximum Torque Vertical 110 hp / 2250 rpm 444 nm / 1400 rpm Engine Oil 16 lt.	8 Forward 2 Reverse With 18.4/15X30 Rear Tire at 2000 Engine rpm Forward Km/h Forward Km/h  1  2.1  7  8.7  2 2.7  8   11  3  3.2  9  13  4  4  10  16.5  5  5.8  11  23.8  6  7.4  12  30.2          Reverse    1  3.2     2  4.0     3  13.0      4  16.5	Fuel Tank 126 lt. Engine Sump 15.4 lt. Cooling System 23 lt. Hydraulic System Steering Box or Pump 47.4 lt. Hydrostatic

CLUTCH	ELECTRICS	FRONT WEIGHTS
Type Double Disc Dry Type (Dual Clutch) Cluctch Disc Diameter 254-305 mm (10-12 inc.)	Voltage 12V Negative Chassis Battery 105 Amperes / Hour Alternator 55 Amperes Starter 1.8 Kw Lights Driving, Parking, Braking lights, Turn Signals, Rear Ploug (plow) Light, Fourway Flasher Other Horn, 7-Pin Trailer Power Outlet	Max 8X27 kg. + 45 kg. Total 261 Kg.

POWER TAKE - OFF (PTO)	INSTRUMENT PANEL	REAR WEIGHTSS
Type Live PTO Standard Drive By Engine Single Speed Rpm At 1730 Engine rpm 540 rpm Diameter At 1730 Engine rpm 540 rpm Number of Splines 6 Maximum Power 65 hp Power (540 rpm) 58,5 hp	Type Monoblock (Single Block) Indicators Tractormeter, Fuel and Engine Tempure (Analog Electronically Transmitted Warming Lights Turn Signals Engine Oil Pressure High Beam Four - Way Flasher PTO Hand Brake Airfilter Switch	On Each Wheel 90 Kg

STEERING WHEEL	TRACTOR WEIGHT	HYDRAULIC SYSTEM
Type Mecanical or Hydraulic	Rear Axle Weight With Rops Fuel, Oil and water (Driver Included) Front Axle Weight 867 Kg. Rear Axle Weight 1945 Kg. Tractor Weight 2812 Kg. (+ -)	Functions Column Height, Position Control Sensitivity Control Maximum Pump Flowrate 17-22 lt. / min Maximum Pump Pressure 210 Bars Maximum Lifting Capacity 2600 Kg Lower Link Flexible Ball Joint According to Category I or II Middie Rod Adjustble, Screw Type

REAR AXLE AND BRAKES	WHEELS AND TIRES	STANDARD ACCESSORIES
Type Oil Bathed Bronze Disc Control Mechanıcal Number of Disc 5 (on each side) Parking Brake Whit Hand Lever Differantıal Lock Mechanical	Front Wheels 5.50 X 16 Front Tires 7.50/16 Front Tires 12 X 38 or 14 X 30 Rear Tires 13.6/12.38 or 18.4/15.30	Swinging Towing Rod External Hydraulic Control Valve and Hose (On Tractors Without Ipto) Toolbox External Telescopic Stretcher Beacon (Warning) Lamp Hydraulic Lock Valve

CABIN	DIMENSIONS
Adjustable Seat Adjustable Steering Column Radio-Player Windscreen Wiper	A Height to Exhaust End 2435 mm B Height From Ground to Steering Wheel 1680 mm C Height From Ground to Sunroof 2640 mm D Total Sunroof 1829 mm E Total Length 3893 mm F Wheelbase 2290 mm G Height From Ground To Clutch 470 mm H From Ground to Pull Arm 380 mm
